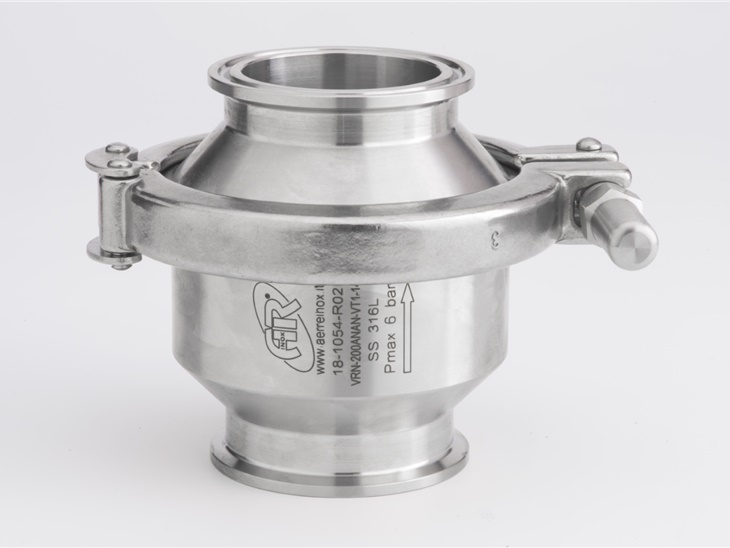

Check valves

Stainless steel spring check valves suitable for vertical or horizontal installation, with BS 4825 / ASME BPE clamp or butt weld connections. These types of sanitary non-return valves are designed to allow the fluid to flow in one direction only, preventing reverse flow and assuring process integrity.


Download brochure

Request quotation

Request information

Technical data

Product Wetted Steel Parts:
AISI 316L 1.4404

Shutter material:
TFM PTFE

Oring material:
Silicone, FKM, EPDM, FFKM, FEP

Sizes:
from ½” to 6”

Connections:
Clamp, Butt Weld

Internal surface finishing:
Ra ≤ 0.5µm

Operating temperature range:
 0°C to +150°C

Operating pressure range:
0 to +6 bar(g)

Optionals:
ATEX
electropolishing
oxygen service
special materials

Special executions on request.
The parameters can change depending on model and size, download the data sheets or contact us for all details.
