TKC Connections

Aerre Inox manufactures TKC stainless steel connections for tanks and sanitary plants in the pharmaceutical, biotechnological, cosmetic, food & beverage and chemical sectors.

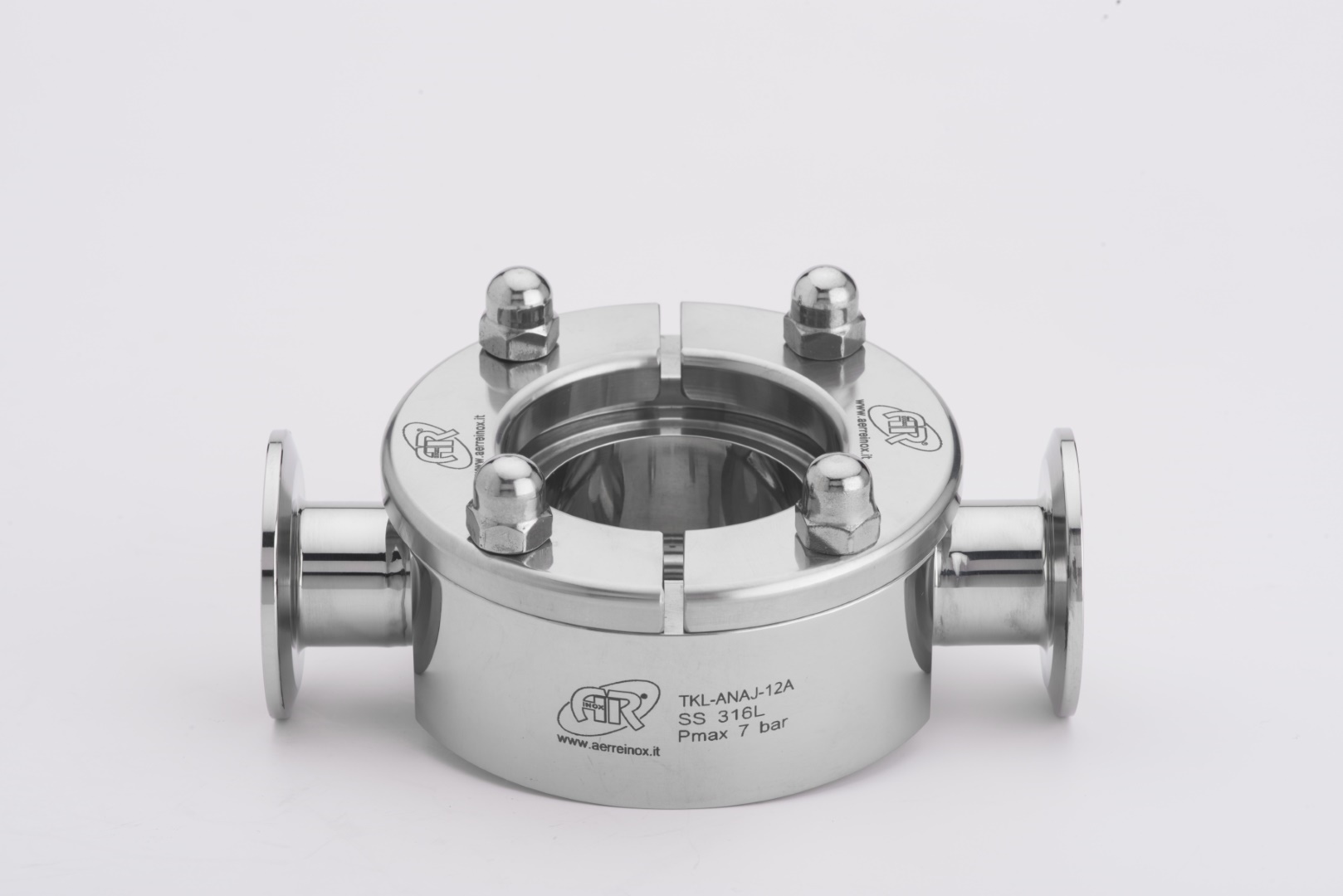

Our TKC connections are an extremely versatile solution, having a compact design and allowing the installation of accessories and/or clamp valves on the top, bottom or side part of a tank. Once installed, the device on the TKC is flush with the tank internal wall, avoiding the typical dead leg of the standard clamp ferrule. To have the same result also on the process lines, the TK IN-LINE is the ideal solution, available with clamp or butt weld connections, allowing the installation of the instrumentation avoiding the "Dead Leg".


Download brochure

Request quotation

Request information

Technical data

Product Wetted Steel Parts:
AISI 316L 1.4404

Sizes:
from ½” to 10”

Internal surface finishing:
Ra ≤ 0.5µm

Operating temperature range:
-80°C to +200°C

Operating pressure range:
+7 bar(g)

Optionals:
customized thickness
radius
angled cut
electropolishing
special materials

Special executions on request.
The parameters can change depending on model and size, download the data sheets or contact us for all details.
