Heat exchangers

Aerre Inox produces fully customized sanitary heat exchangers for the pharmaceutical, biotechnological, cosmetics, food & beverage and chemical industries.

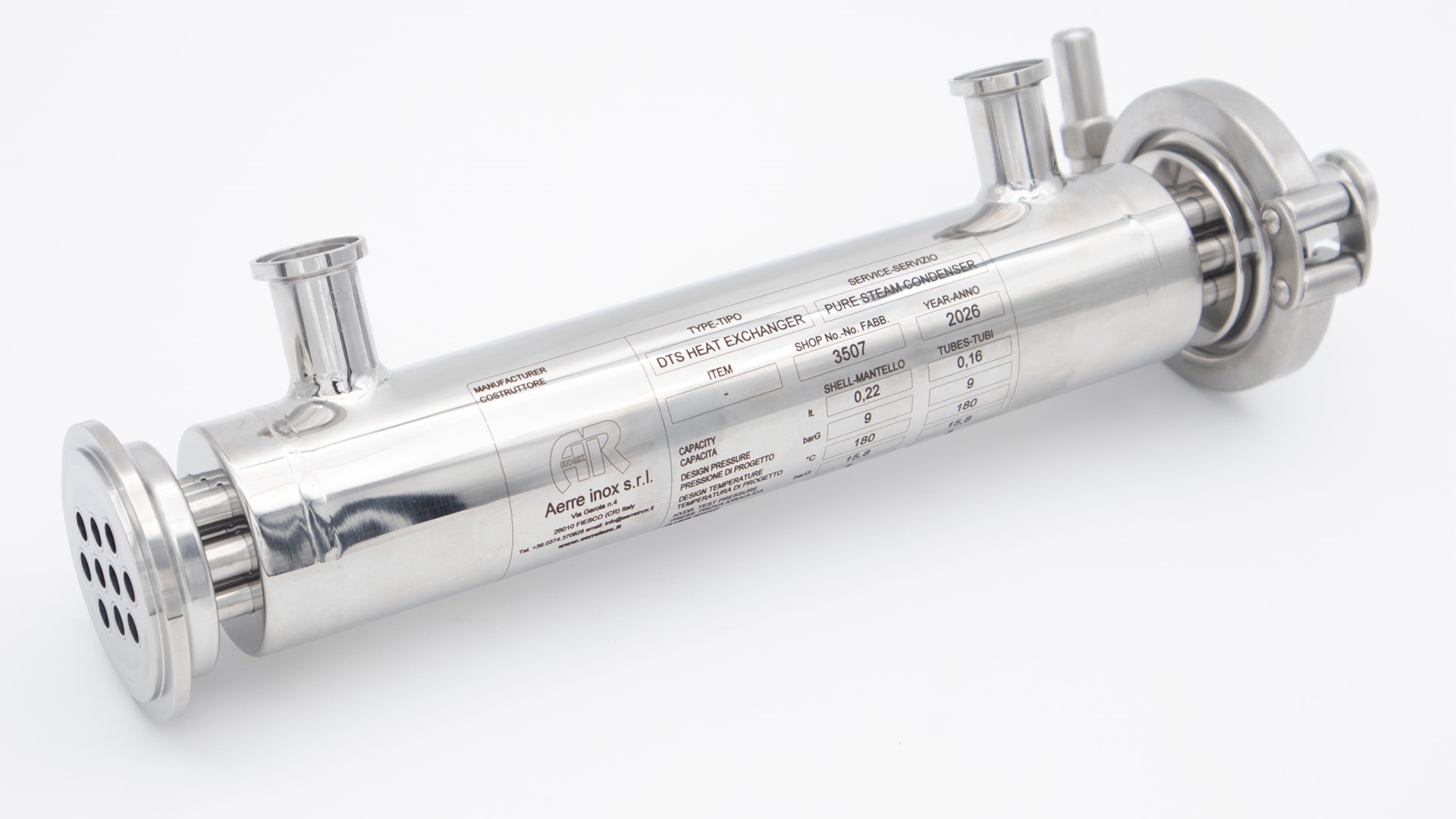

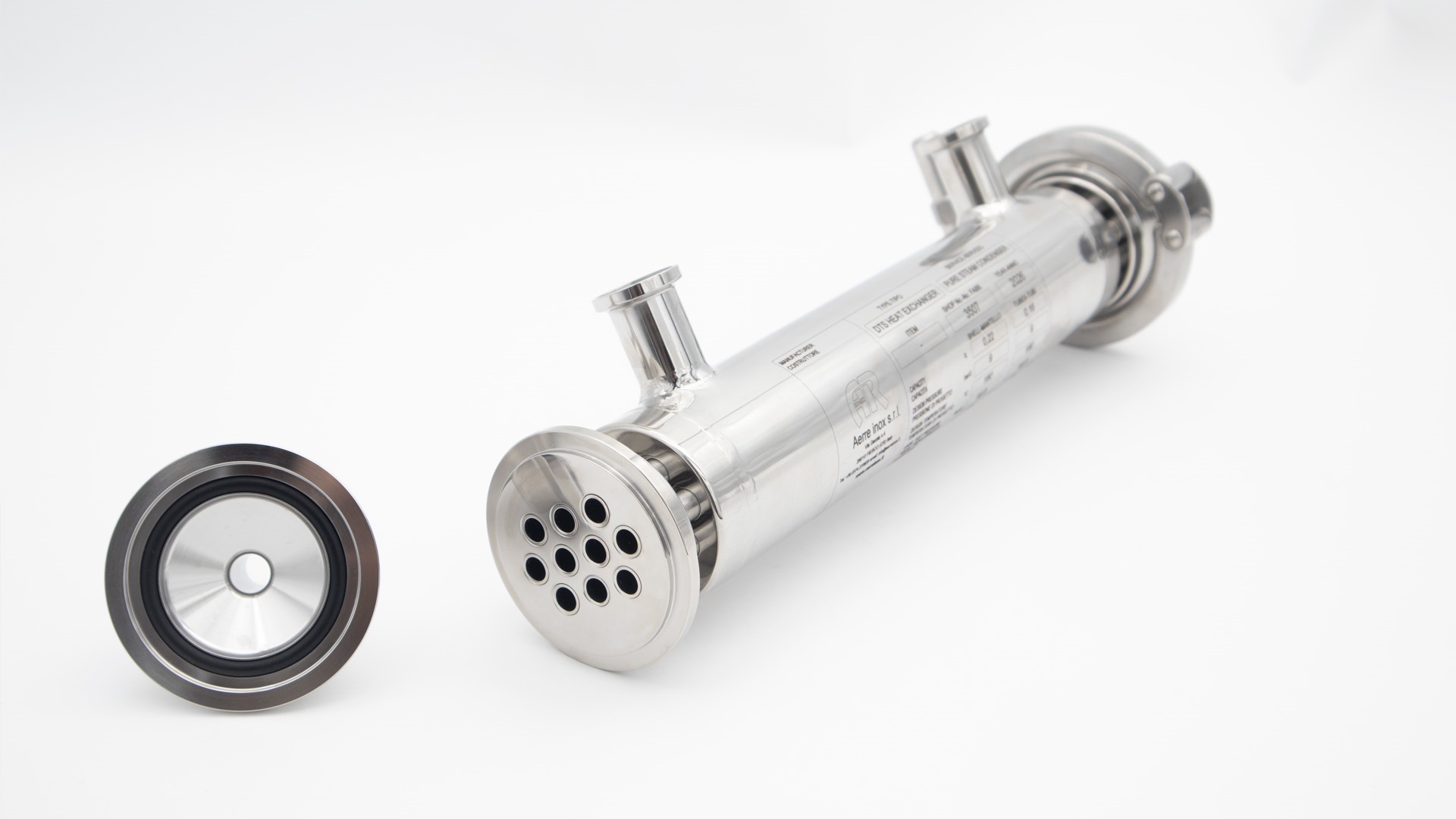

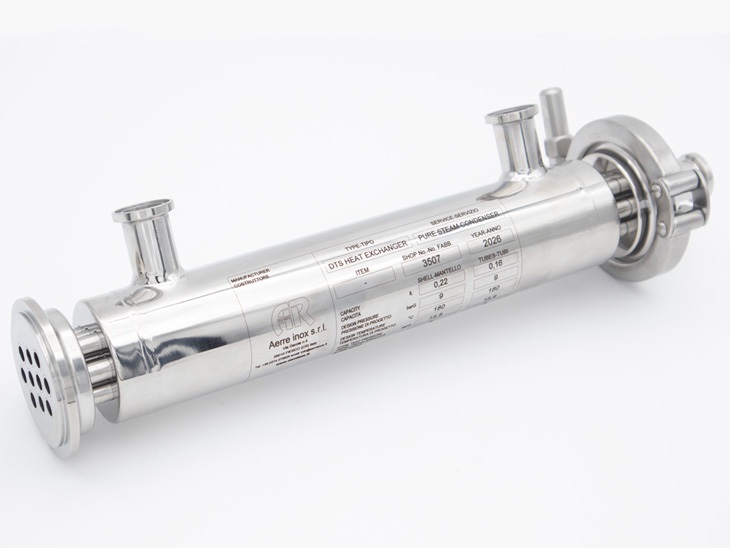

The DTS double tube sheet heat exchangers are designed to allow the thermal exchange between two process fluids avoiding their mixing; these devices are available with single or multiple passage and are completely drainable. All heat exchangers, used for heating, cooling or both, are made with high quality standards in full compliance with FDA, cGMP and customer project requirements. The welding option, for sealing the tubes to the tube sheets, allows to fully comply with the ASME BPE regulations, already contemplated as the manufacturing standard for these devices.

Download the technical sheets to get information about the details and specifications for using the Aerre Inox heat exchangers, which are essential for making the best use of each product and increasing the levels of functionality and reliability of the system.


Download brochure

Request quotation

Request information

Technical data

Product wetted steel parts:
AISI 316L 1.4404

Seals material:
PTFE certified FDA or USP Class VI

Design:
seamless tubes, straight tube bundle, double tube sheet

Passage:
single, multiple

Executions:
horizontal, vertical

Service:
instantaneous heater
batch heater
instantaneous cooler
batch cooler
multifunction

Union of Tubes-Sheets:
expanded, expanded and welded according to ASME BPE

Connections:
Clamp pipe side
Flanged shell side

Shell diameter:
up to 600mm

Length:
up to 6000mm, longer lengths on request

Internal surface finishing:
Ra ≤ 0.5µm

Operating temperature range:
-20°C to +200°C

Operating pressure range:
-1 to +10 bar(g)

PED Certification:
2014/68/EU

Optionals:

1.4435 wetted parts
electropolishing
high pressure design
special connections
fully welded thermal insulation cover

Special executions on request.
The parameters can change depending on model and size, download the data sheets or contact us for all details.
