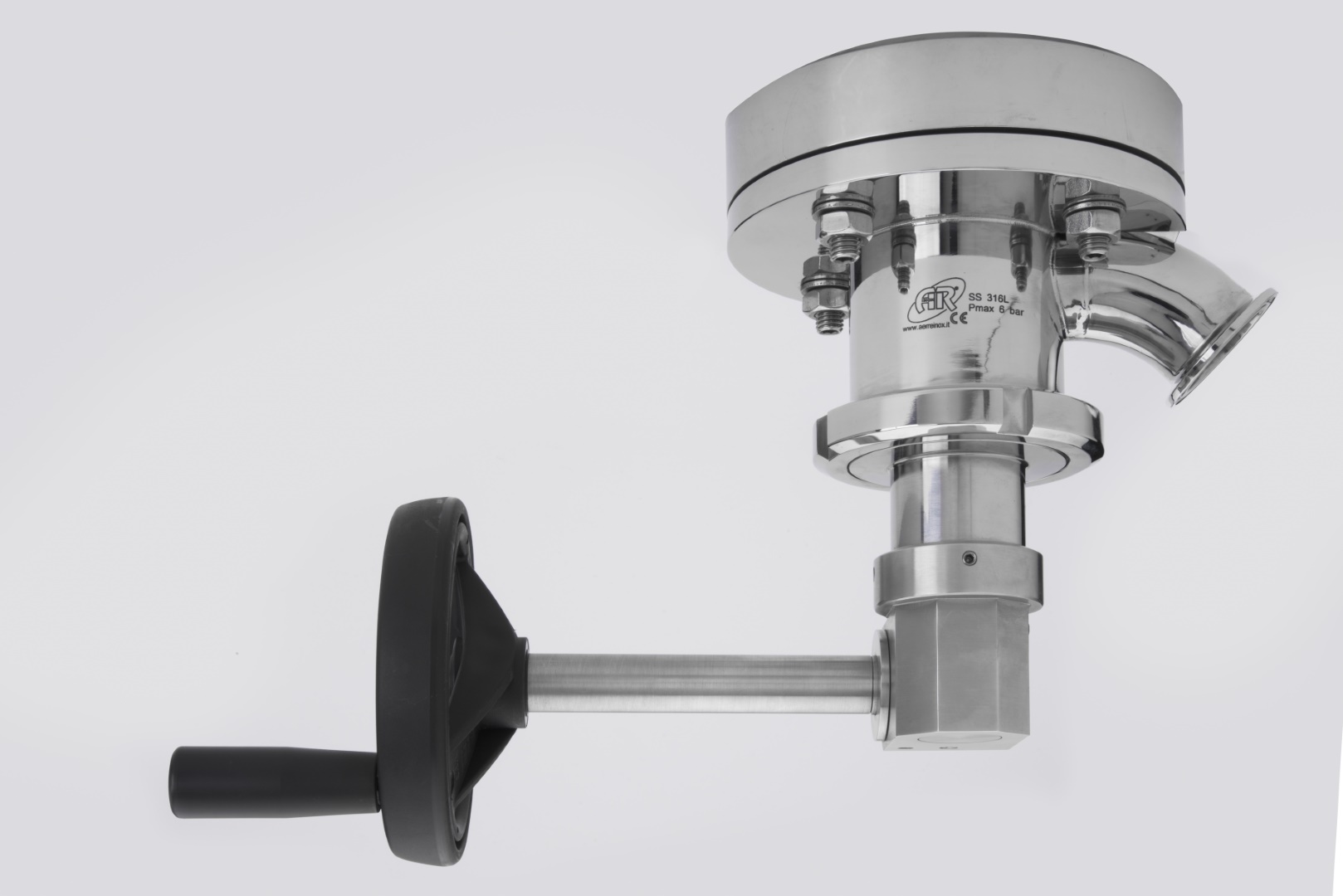

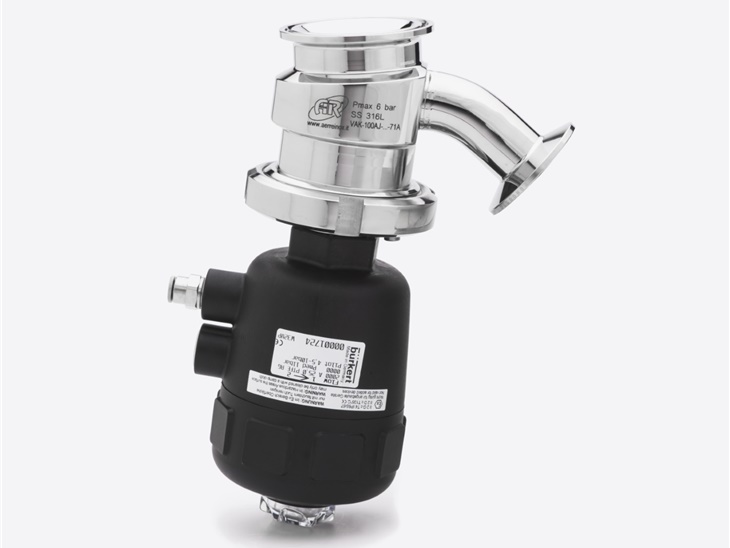

Die hergestellten Modelle eignen sich für die direkte Montage am Boden der Tanks und Produktreaktoren. Diese Ventile garantieren eine vollständige Entleerung und die Reduzierung von Totraum auf ein Minimum. Aseptische Aerre Inox-Bodenventile sind in verschweißter Ausführung, für TKC-Verbindungen oder mit abnehmbarem Flansch und in verschiedenen Größen erhältlich. Sie können mit einem manuellen oder pneumatischen Stellantrieb betrieben werden. Der Prozessanschluss kann mit Lötenden oder BS 4825 / ASME BPE-Klemmen angefordert werden.
Brochure herunterladen
Anfrage
Typen
Scheda Tecnica
VAA
Self-draining 10° tank bottom welded body
Data sheets:
VAA-VAK dimensions Rev3
MVA-T TFM DIAPHRAGM Rev2
MVA-X SILICONE DIAPHRAGM Rev1
VAK
Self-draining 10° removable body for TKC/TC connection
VAF
Straight tank bottom welded body
VAF-VAR dimensions Rev4
VAR
Straight removable flanged body
Technical data
Product Wetted Steel Parts:AISI 316L 1.4404 Diaphragm material: TFM PTFE, Silicone Sizes: from ¾” to 4” Outlet connection:Clamp, Butt Weld Internal surface finishing: Ra ≤ 0.5µm
Actuation: manual thermoplastic pneumatic thermoplastic manual stainless steel pneumatic stainless steel Operating temperature range: -10°C to +150°C Operating pressure range:0 to +6 bar(g)
Optionals: limit switch box ATEX electropolishing CIP/SIP connection level gear box for manual actuator special materials
Special executions on request.The parameters can change depending on model and size, download the data sheets or contact us for all details.
