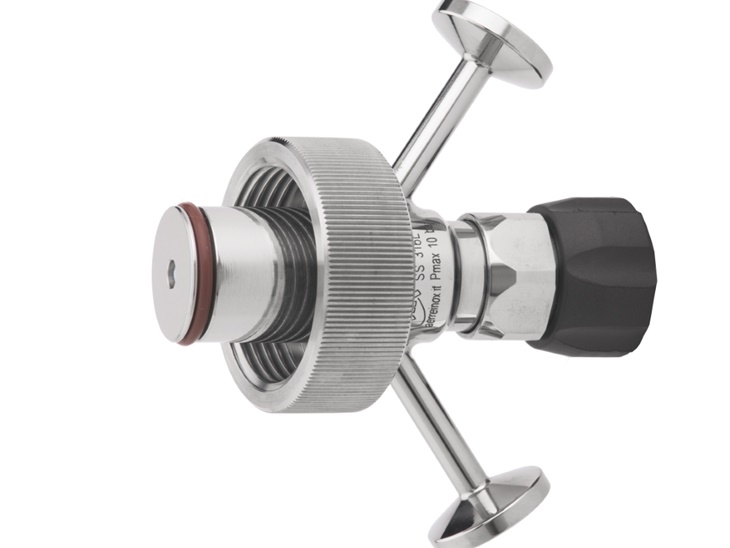

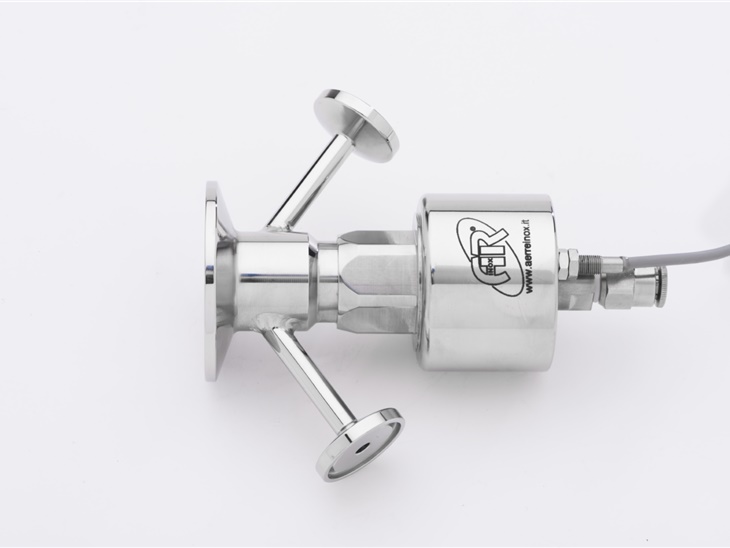

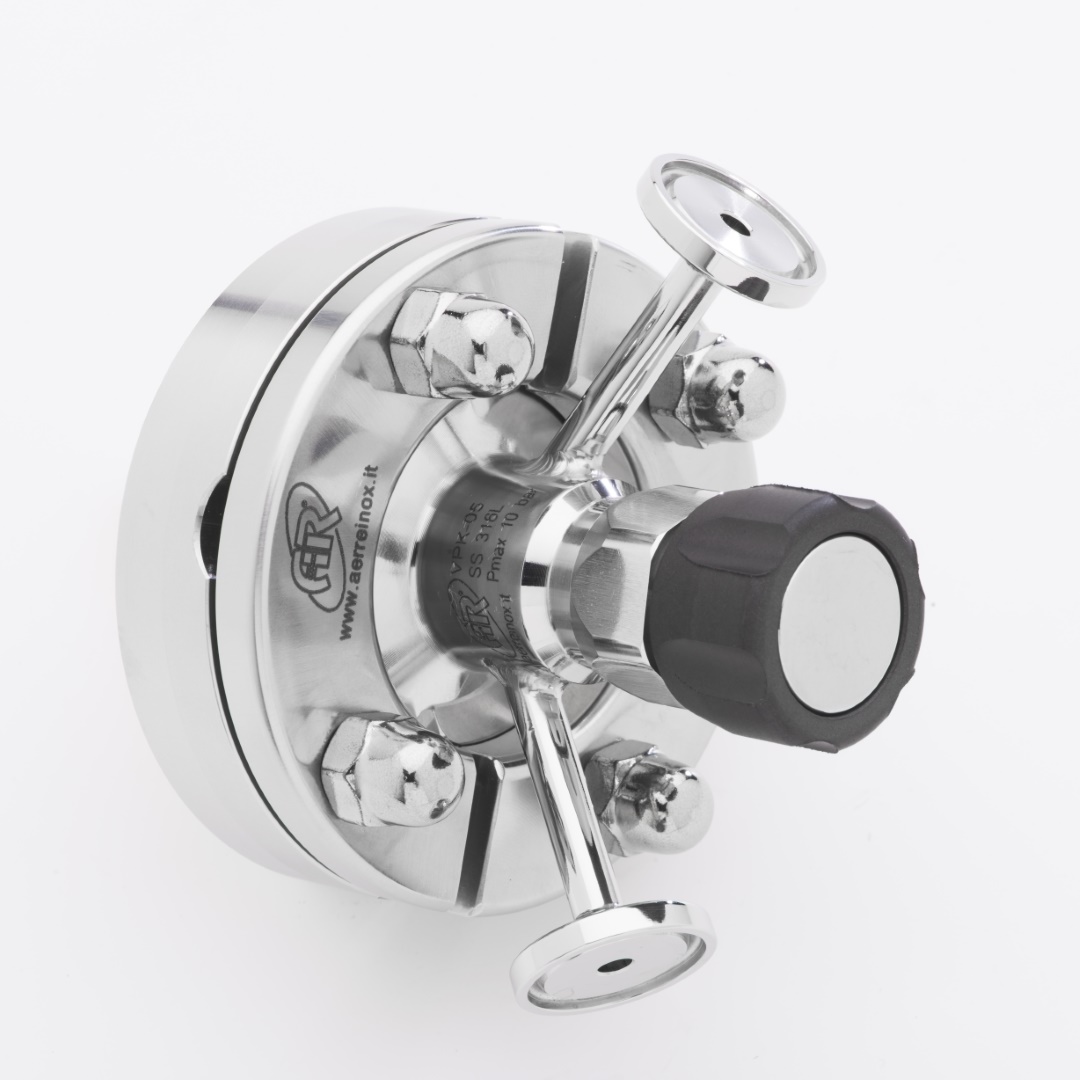

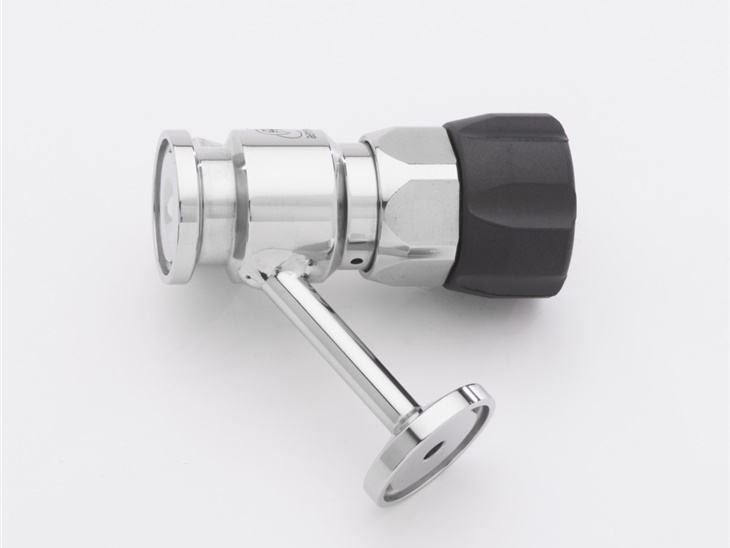

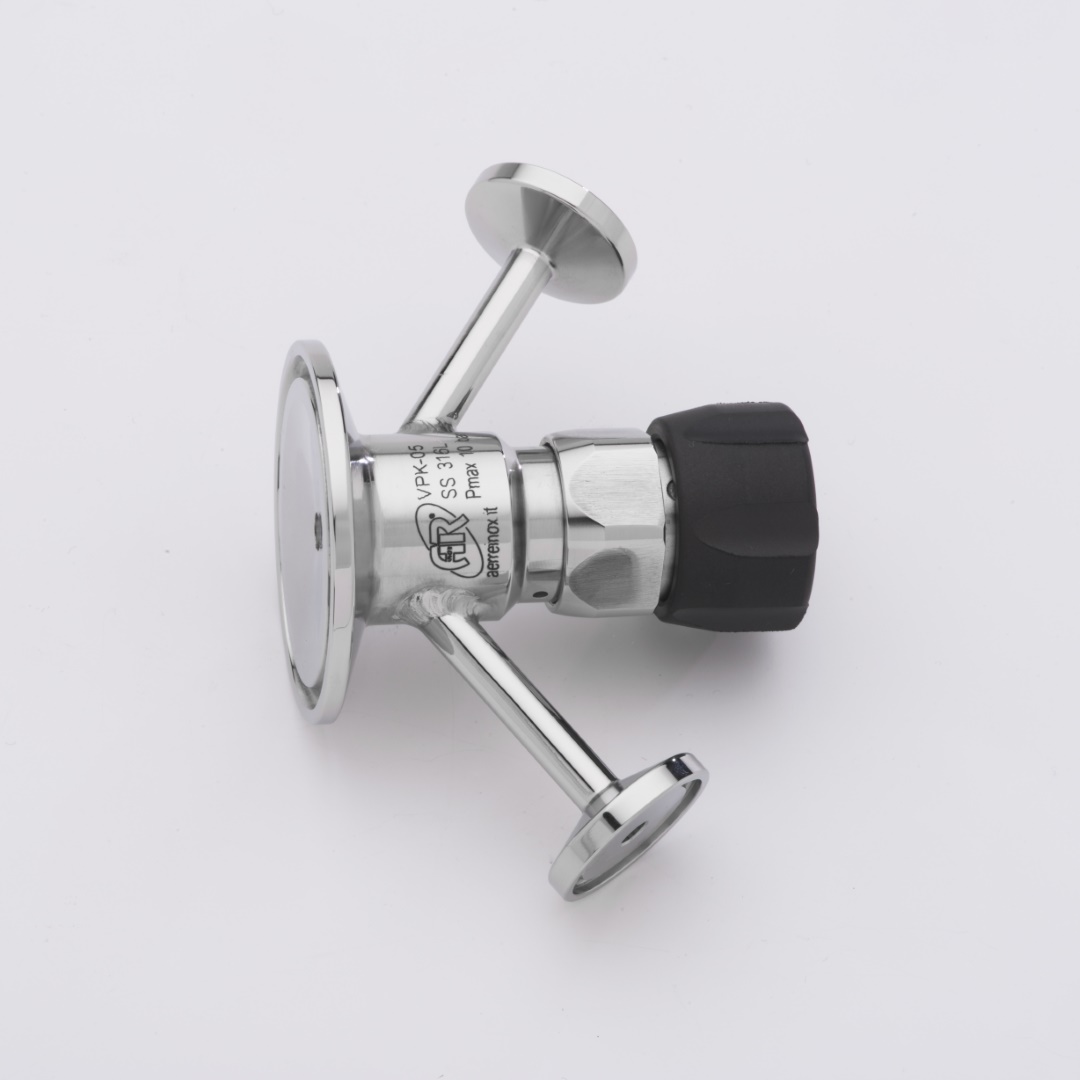

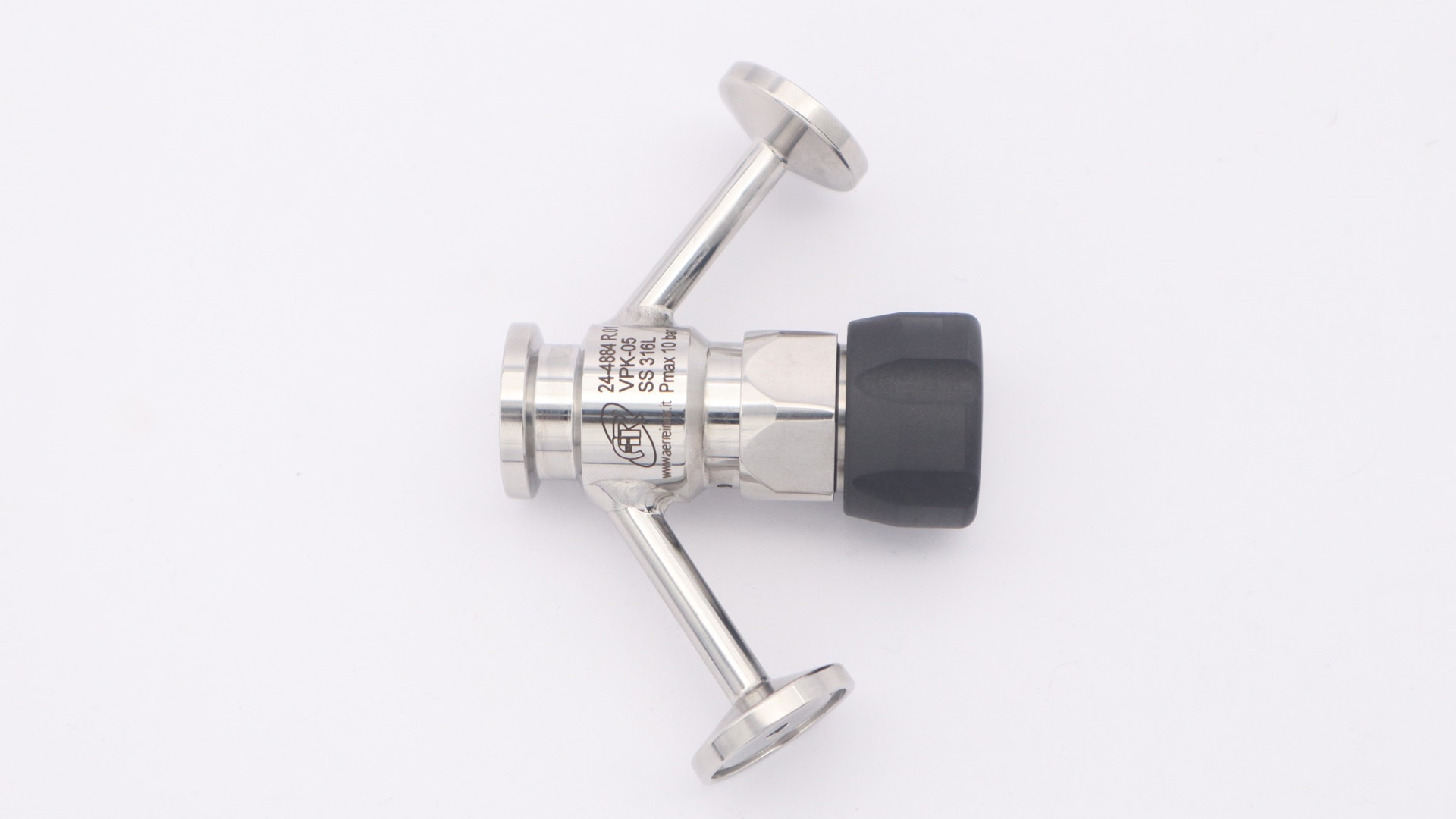

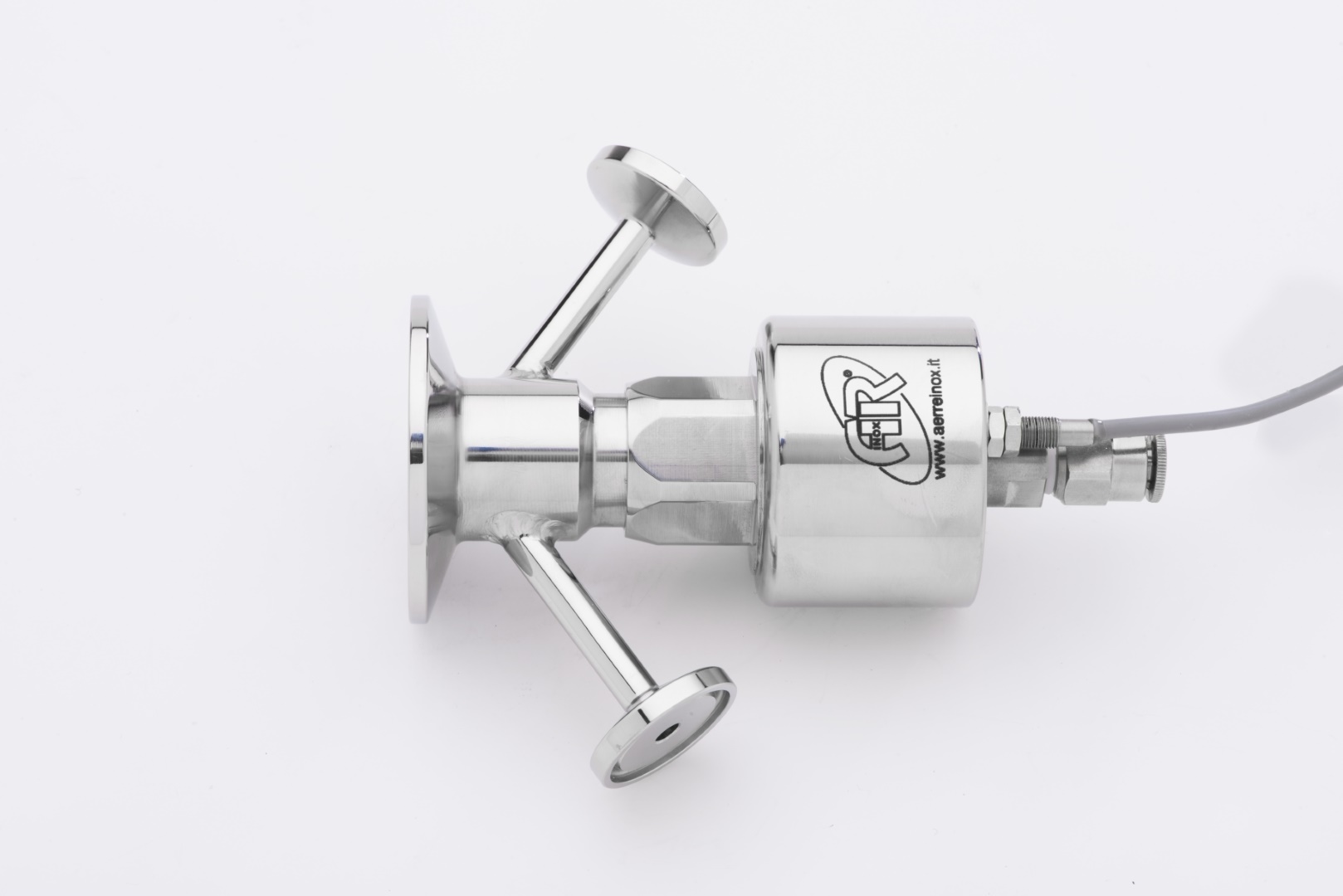

Die aseptischen Probenahmeventile sind für aseptische Probenentnahme konzipiert. Sie können dank ihrer besonderen Konfiguration mit reinem Dampf im SIP-Verfahren sterilisiert oder im CIP-Verfahren gewaschen werden, um eine Schutzbarriere auf der Membran zu schaffen. Diese Probenbuchsen sind vollständig autoklavierbar, in manueller oder pneumatischer Ausführung, perfekt austauschbar.
Brochure herunterladen
Anfrage
Typen
Scheda Tecnica
VPK
Aseptic sampling valve
Data sheets:
VPK Dimensions Rev1
MVPAK Diaphragm Rev4
VPA
VPA Dimensions Rev1
MVPA Diaphragm Rev2
Technical data
Product Wetted Steel Parts: AISI 316L 1.4404 Diaphragm material:modified PTFE, Silicone Sizes: from ½” to 4” Process connection:Clamp, Butt Weld
Sample and CIP/SIP connection:Clamp, Butt Weld, Hose Barb Actuation: manual thermoplastic manual lever pneumatic actuator Internal surface finish: Ra ≤ 0.5µm Operating temperature range: 0°C to +150°C Operating pressure range: 0 to +10 bar(g)
Optionals: special connections electropolishing inductive switch open/close ATEX special materials
Special executions on request.The parameters can change depending on model and size, download the data sheets or contact us for all details.
