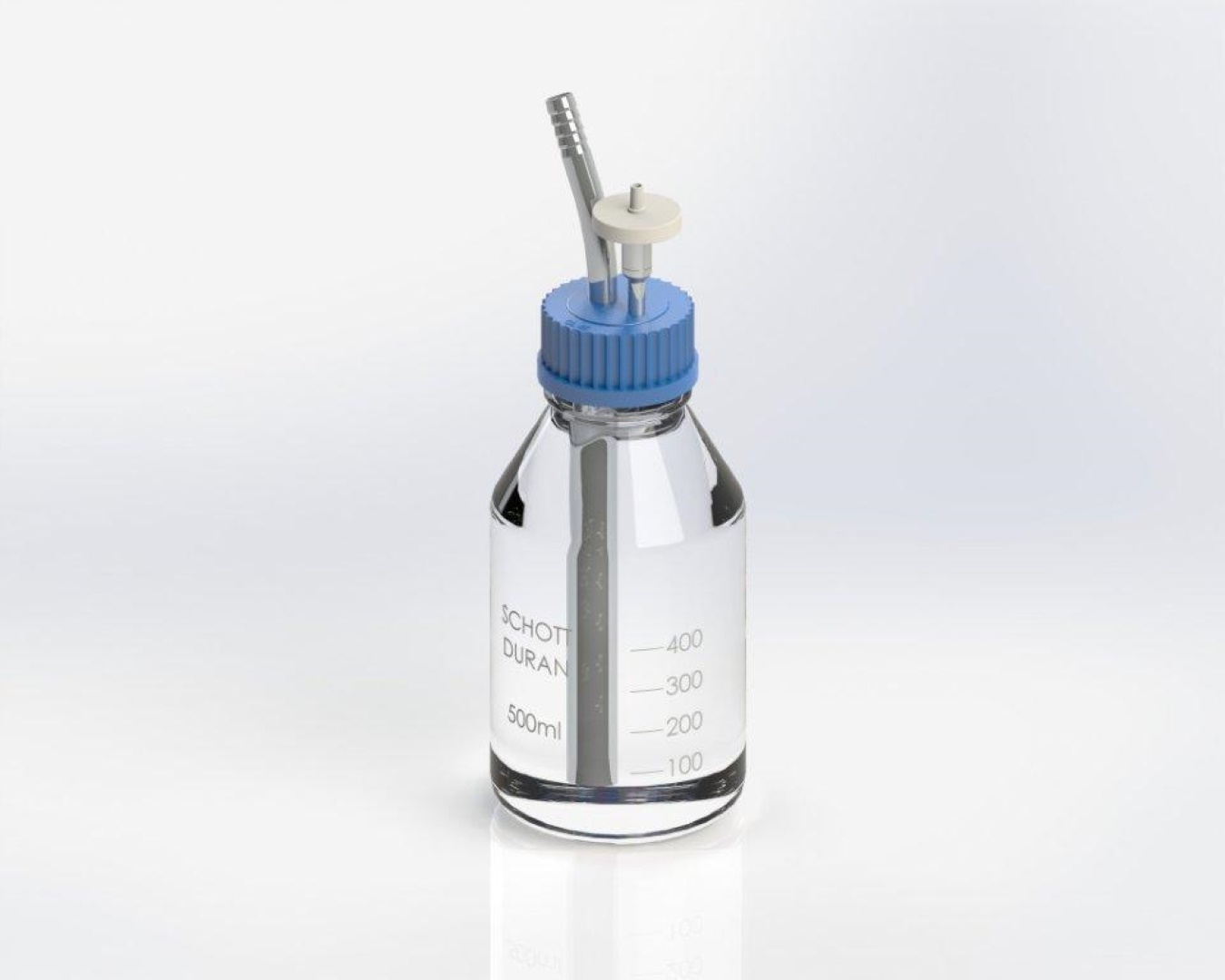

Aseptic Sampling Bottles

Aerre Inox can offer bottles for sterile and aseptic sampling of chemical-pharmaceutical products. Our sampling bottles are equipped with a diaphragm multi-valve sterilizable with pure steam, sterile filter, bottles of borosilicate glass and adjustable bottle holder with removable handle, customizable for every need.


Download brochure

Request quotation

Request information

Technical data

Product Wetted Steel Parts:
AISI 316L 1.4404

Diaphragm material:
PTFE/EPDM

Bottle volume:
250ml, 500ml, 1000ml

Process connection:
Clamp
Hose Barb
Male Luer

Actuation:
manual handwheel, pneumatic actuator

Internal surface finishing:
Ra ≤ 0.5µm

Operating temperature range:
0°C to +150°C

Operating pressure range:
-1 to +1,5 bar(g)

Optionals:
electropolishing
special materials

Special executions on request.
The parameters can change depending on model and size, download the data sheets or contact us for all details.
