In-Line Aseptic Valves

Configure product

  See the gallery

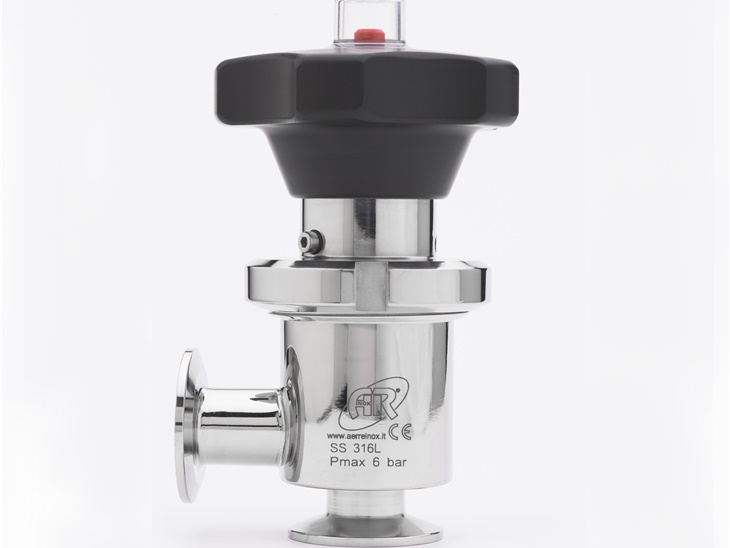

Aerre Inox manufactures in-line aseptic valves suitable for installation on the process lines of pharmaceutical and biotechnological plants. Available in "L", "T" or "ZDL Zero Dead Leg" versions, and in different sizes, the Aerre Inox in-line aseptic valves are equipped with a manual or pneumatic actuator. Process connections can be requested with butt weld ends or clamp BS 4825 / ASME BPE. The internal design of the body grants a complete drainability; moreover, due to the reduction of the dead leg, the ZDL Zero Dead Leg version is the ideal solution for the points of use, which can also be integrated with a sampling valve obtained directly within the body itself.


Download brochure

Request quotation

Request information

Technical data

Product Wetted Steel Parts:
AISI 316L 1.4404

Diaphragm material:
modified PTFE, Silicone

Sizes:
from ¾” to 4”

Connections:
Clamp, Butt Weld

Actuation:
manual thermoplastic
pneumatic thermoplastic
manual stainless steel
pneumatic stainless steel

Internal surface finishing:
Ra ≤ 0.5µm

Operating temperature range:
 -10°C to +150°C

Operating pressure range:
0 to +6 bar(g)

Optionals:
 limit switch box
ATEX
electropolishing
special materials

Special executions on request.
The parameters can change depending on model and size, download the data sheets or contact us for all details.
