Sanitary Sampling Valves

Configure product

  See the gallery

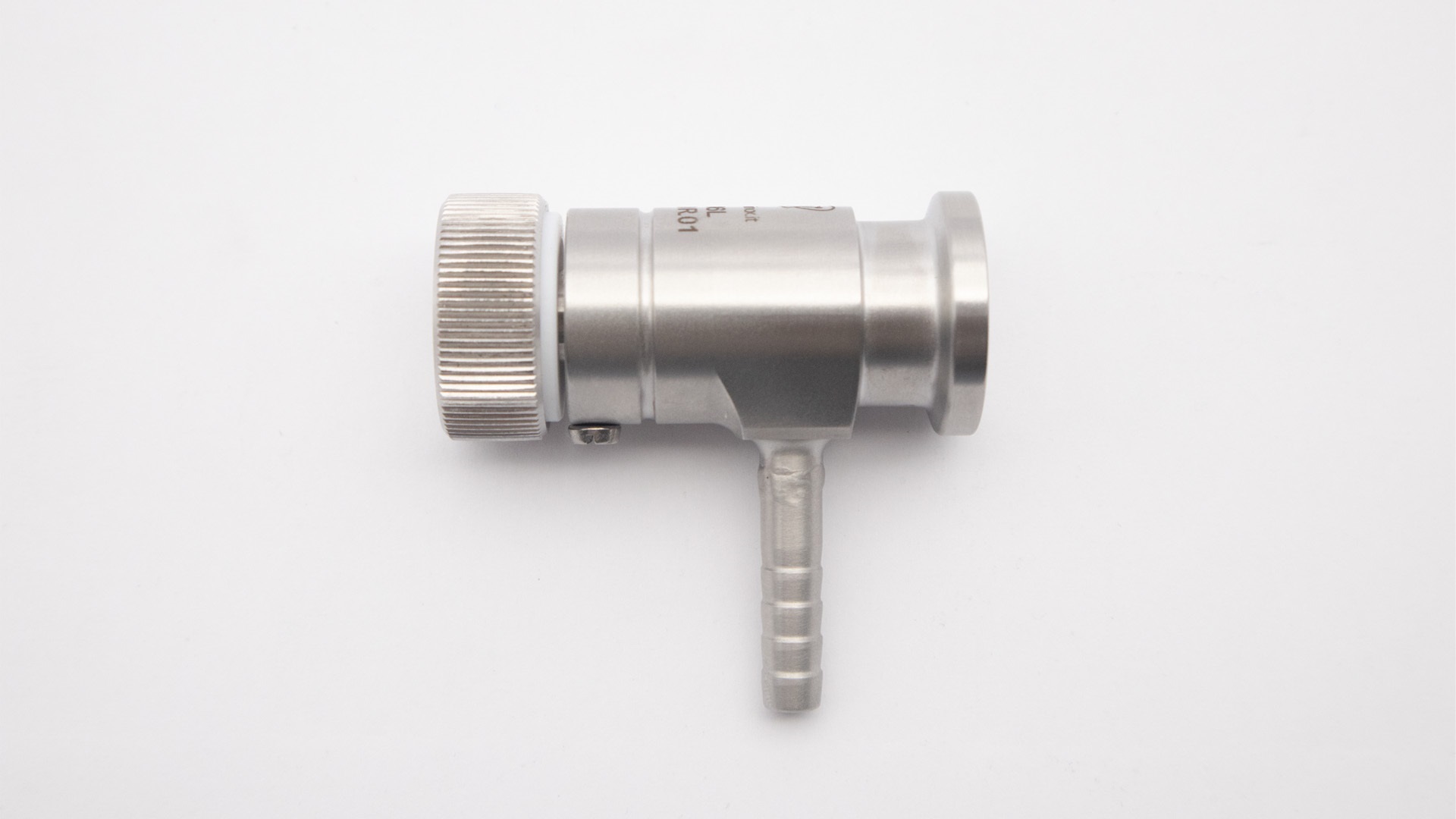

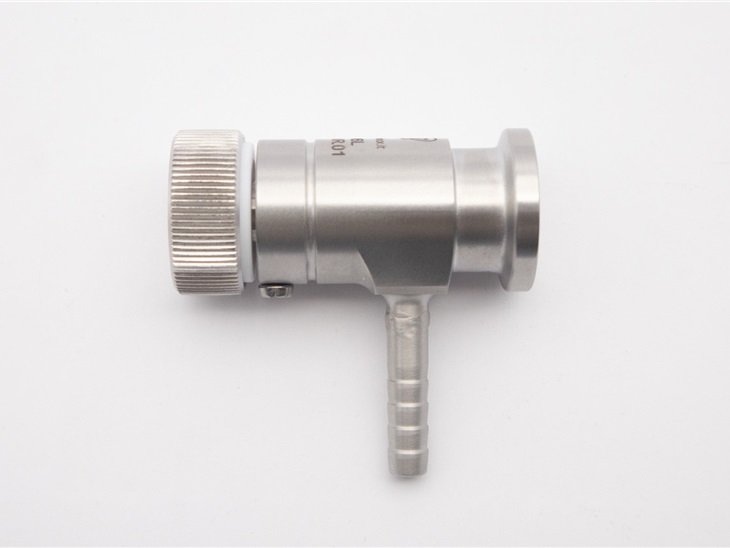

The sanitary sampling valves are completely autoclavable, they allow for sampling at the center of the line, obtaining the desired representative sample. Inexpensive and easy to use, these sampling valves in AISI 316L can be installed on distribution loops or tanks, they are available with CLAMP, butt weld or gas threaded connections.


Download brochure

Request quotation

Request information

Types

  See the gallery

RPS

Sanitary sampling valve

Data sheets:

RPS Dimensions Rev7

  See the gallery

RPQ

Sanitary sampling valve 90° outlet

Data sheets:

RPS Dimensions Rev7

  See the gallery

RPV

Sanitary sampling valve vent

Data sheets:

RPV VENT Rev1

  See the gallery

RPP

Sanitary sampling valve

Data sheets:

RPP technical sheet Rev0

Technical data

Product Wetted Steel Parts:
AISI 316L 1.4404

Plug material:
modified PTFE, Silicone, FKM

Oring material:
Silicone, EPDM, FKM

Sizes:
from ½” to 4”

Process connection:
Clamp or Butt Weld
Flat Face or with Deep Tube

Sample connection:
Male Luer
Hose Barb
Quick Connect

Actuation:
stainless steel handwheel

Internal surface finishing:
Ra ≤ 0.76µm

Operating temperature range:
-10°C to +150°C

Operating pressure range:
0 to +10 bar(g)

Optionals:
electropolishing
special materials

Special executions on request.
The parameters can change depending on model and size, download the data sheets or contact us for all details.
