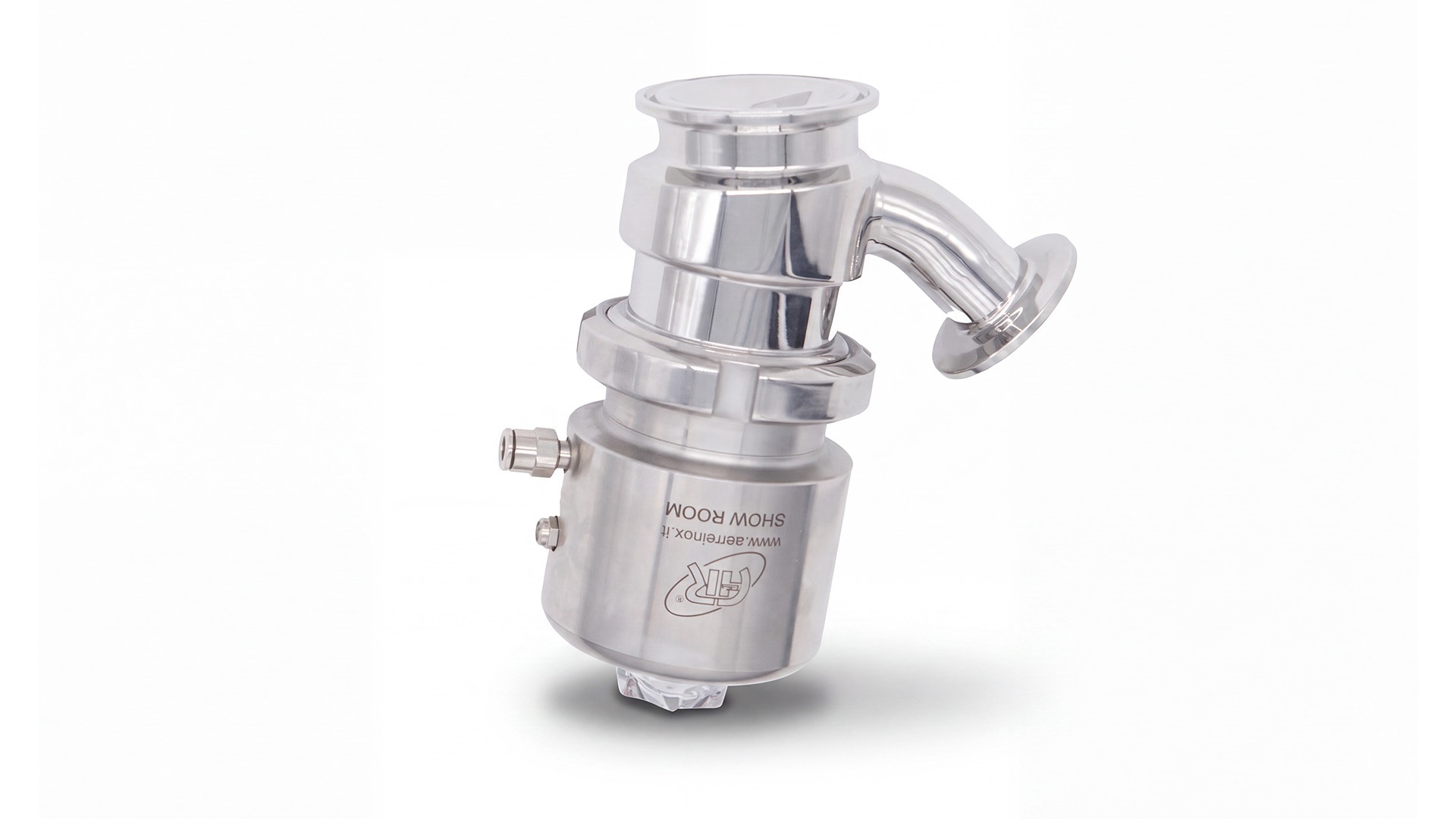

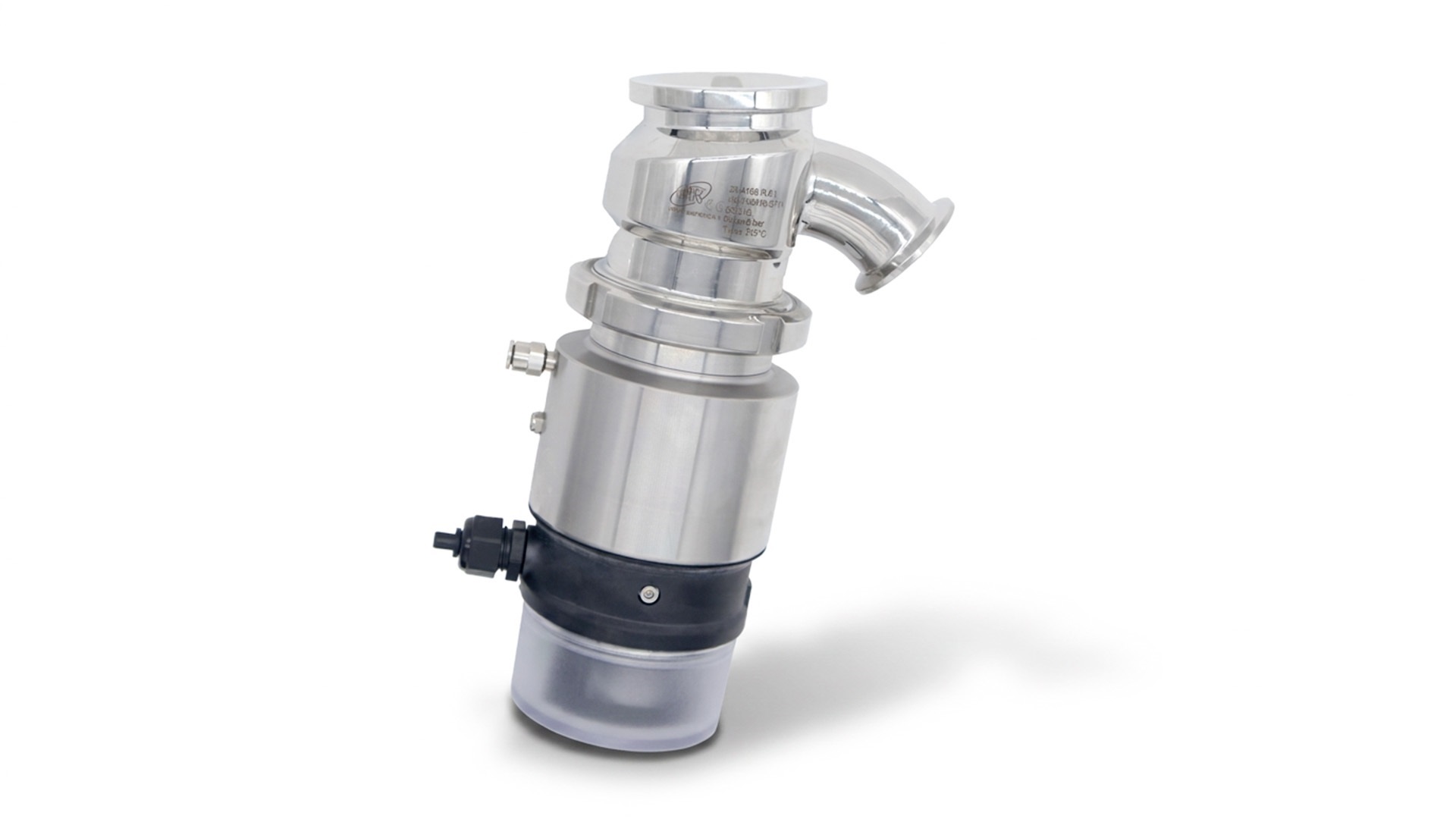

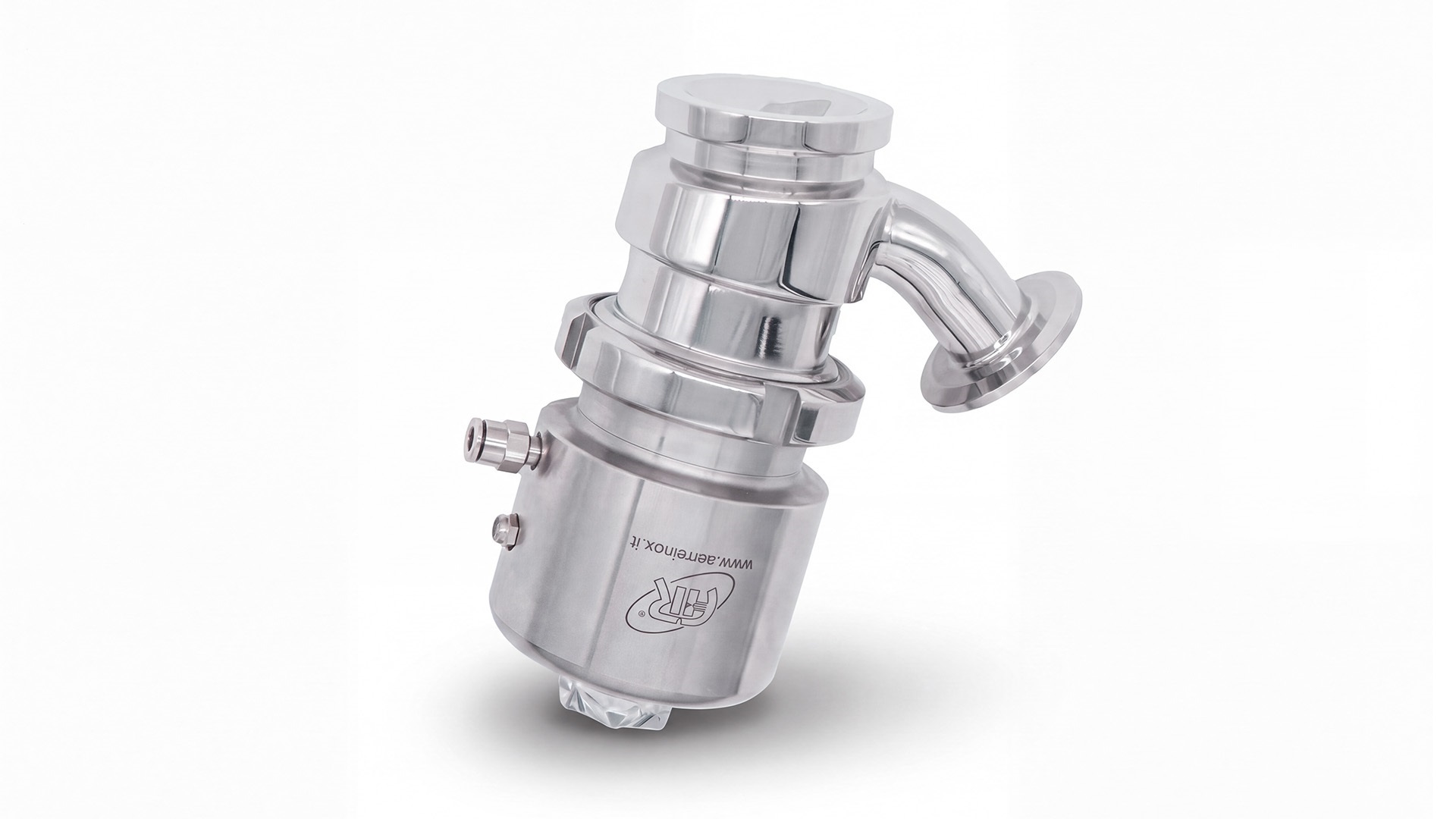

Aseptic Tank Bottom Valves

Configure product

  See the gallery

The available models are suitable for direct installation on the bottom of tanks and preparation reactors for product discharge; these valves guarantee the complete draining whilst reducing the "Dead Leg" to a minimum. Available in different versions, such as to be welded directly to tank bottom, with TKC connection or with removable flange, and in different sizes, Aerre Inox aseptic tank bottom valves can be operated by manual or pneumatic actuator. Process connection can be requested with butt weld ends or clamp BS 4825 / ASME BPE.


Download brochure

Request quotation

Request information

Technical data

Product Wetted Steel Parts:
AISI 316L 1.4404

Diaphragm material:
modified PTFE, Silicone

Sizes:
from ¾” to 4”

Outlet connection:
Clamp, Butt Weld

Internal surface finishing:
Ra ≤ 0.5µm

Actuation:
manual thermoplastic
pneumatic thermoplastic
manual stainless steel
pneumatic stainless steel

Operating temperature range:
-10°C to +150°C

Operating pressure range:
0 to +6 bar(g)

Optionals:
limit switch box
ATEX
electropolishing
CIP/SIP connection
level gear box for manual actuator
special materials

Special executions on request.
The parameters can change depending on model and size, download the data sheets or contact us for all details.
